IGU-16

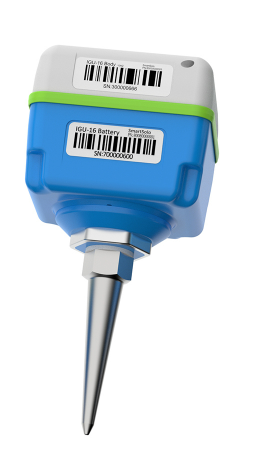

Smart Seismic Sensor 1C

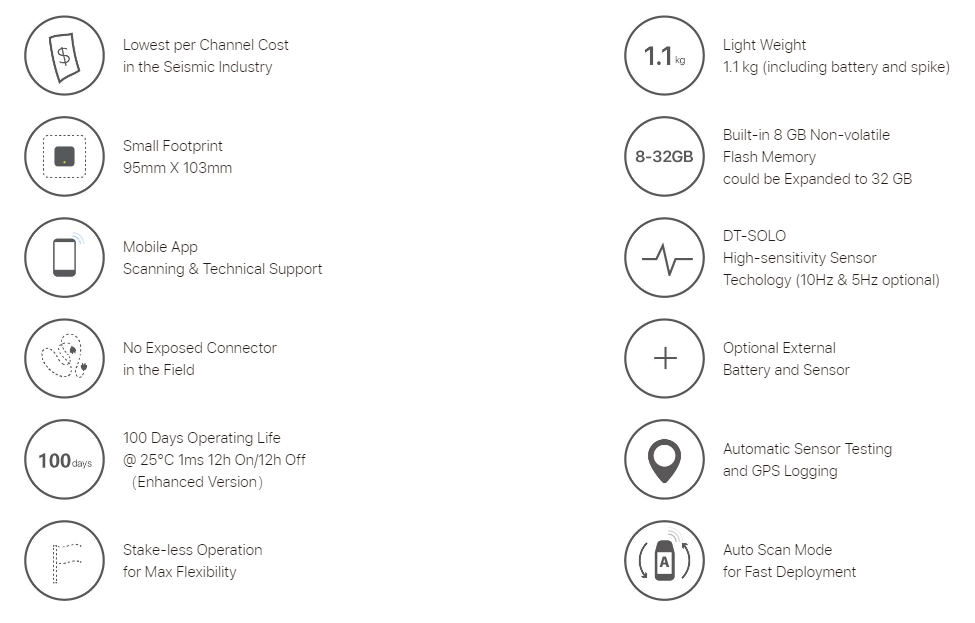

Patented Modular Design for Easy Battery Replacement
Fast Charging and High Speed Data downloading
No Exposed Connector. Super Reliable
The Most Rugged Node on the Market

Seismic Sensor Working Principle

Seismic sensors work by utilizing mass-spring systems and transduction mechanisms to convert ground vibrations into electrical signals. These signals are then processed and analyzed to extract valuable information about seismic events and the subsurface properties.

●Mass-Spring System: Seismic sensors typically consist of a mass-spring system. This system comprises a heavy mass (the seismic mass) attached to a spring or set of springs. The mass is designed to be sensitive to even the smallest ground vibrations.

●Inertial Motion: When seismic waves propagate through the Earth, they cause the ground to move back and forth or up and down. This motion is transferred to the seismic mass of the sensor.

●Relative Motion: The mass-spring system within the sensor is engineered to resist motion. As the ground moves, the inertia of the seismic mass resists this motion, causing relative displacement between the mass and the sensor’s frame.

●Transduction Mechanism: To convert the relative motion into an electrical signal, seismic sensors employ various transduction mechanisms. One common method is the use of electromagnetic induction. This involves a coil of wire attached to the seismic mass and positioned within a magnetic field. As the mass moves relative to the coil, it induces an electrical current in the wire.

●Electrical Signal Generation: The induced electrical current is proportional to the displacement or velocity of the seismic mass. This electrical signal represents the ground vibrations and is then amplified, digitized, and recorded for further analysis.

●Signal Analysis: The recorded electrical signals from multiple seismic sensors are processed and analyzed to determine the characteristics of the seismic waves. This analysis includes studying the amplitude, frequency, and arrival time of the waves, providing valuable insights into the properties of the subsurface, such as the location and magnitude of seismic events or the structure of geological formations.

The Smart Seismic Sensor or Land Cased Geophone 5Hz, developed by SmartSolo Inc, offers a range of applications across the field of seismic exploration and monitoring.

IGU-16 Specifications

Size and Weight

95mm x 103mm x 118mm (without spike)

1.1kg(Including internal battery and spike)

Data Storage

8GB

32GB

Recharge Time

<3.25 hours

Operating Life@25°C

50 days Continuous@ 1ms

100 days Segmented (12hours ON/12hours SLEEP) @ 1ms

External Power supply

Exchange EB battery

Acquisition Performance 5Hz

Natural Frequency : 5Hz

Spurious Frequency : >170Hz

Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt

Damping : 0.7

Open Circuit Intrinsic Voltage Sensitivity : 80 V/m/s (2.03 V/in/s)

Remark : All parameters are specified at +22°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated

Acquisition Performance 10Hz

Natural Frequency : 10Hz

Spurious Frequency : >240Hz

Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt

Damping : 0.7

Open Circuit Intrinsic Voltage Sensitivity : 85.8 V/m/s (2.18 V/in/s)

Remark : All parameters are specified at +25°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated.

Physical Specs

Seismic data channel(s) : 1

ADC resolution : 32 bits

Sample intervals : 1, 2, 4 milliseconds

Preamplifier gain : 0dB to 24 dB in 6 dB steps

Anti-alias filter : 206.5 Hz @ 2ms (82.6% of Nyquist)
Selectable – Linear Phase or Minimum Phase

DC blocking filter : 1Hz to 10Hz, 1Hz increments or DC Removed

Operating temperature : -40°C ~ +70°C

Waterproof : IP67

Charging Temperature Range : +3°C ~ +45°C

Channel Performance

Maximum Input Signal : ±2.5Vpeak @ Gain 0dB

Equivalent Input Noise : 0.71μV @ 2ms Gain 12dB(typical)

Total Harmonic Distortion : <0.0005% @ Gain 0dB

Common Mode Rejection : ≥100dB

Gain Accuracy : <1%

GPS Time Standard : 1ppm

Timing Accuracy : ±10μs, GPS Disciplined

System Dynamic Range : 140dB

Frequency Response : 0 ~ 413Hz

Remark : All parameters are specified at 2ms sample interval, 31.25 Hz, 25°C, unless otherwise indicated

Geobit is the exclusive representative of SmartSolo Inc in Greece.

IGU-16HR

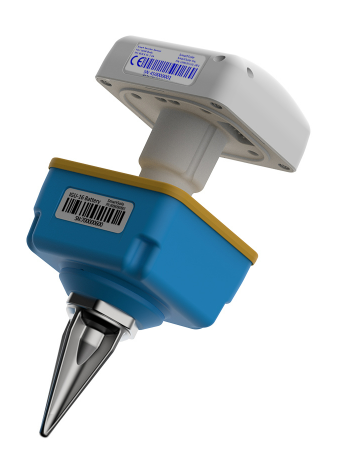

High Resolution Smart Seismic Sensor 1C

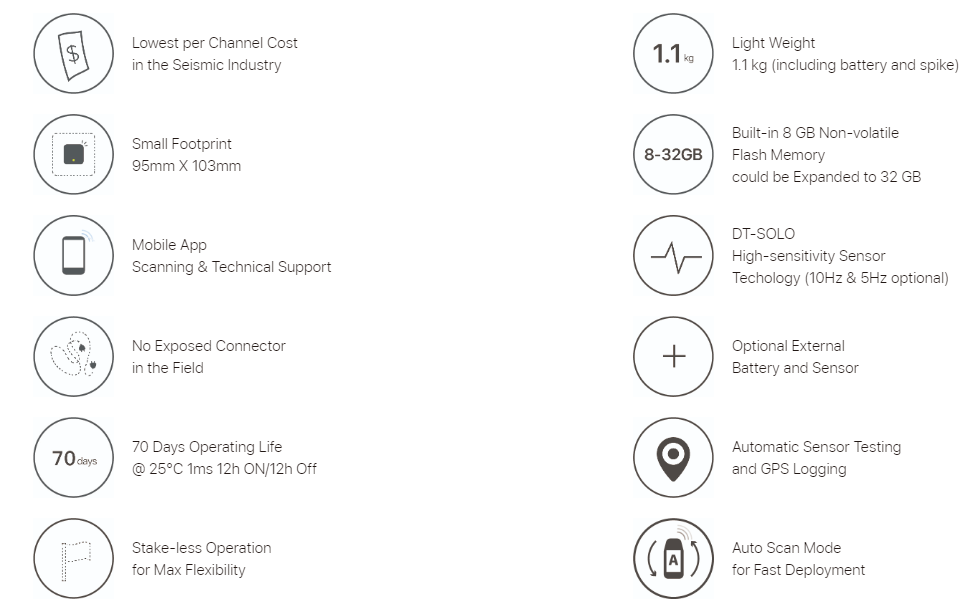

Same Great Features as IGU-16
Upgraded Resolution. Up To 0.25ms Sampling Rate

The High Resolution Smart Seismic Sensor also referred to as the Smart Solo Geophone, is a state-of-the-art solution designed to revolutionize seismic monitoring. Engineered with the latest technological advancements, this sensor offers unparalleled precision and reliability for professionals in the field of geophysics and seismology.

With its advanced capabilities, the High Resolution Smart Seismic Sensor empowers researchers, geologists, and engineers to accurately measure ground vibrations and seismic activities. By capturing high-resolution data, it provides valuable insights into the dynamics of the Earth’s crust, fault movements, and seismic events.

Key Features

High Resolution Data: The sensor’s cutting-edge technology enables it to capture seismic data with exceptional precision and accuracy. Its high-resolution capabilities allow for detailed analysis, enhancing the understanding of complex geological phenomena.

Real-time Monitoring: Stay up-to-date with the latest seismic events as the Smart Solo Geophone provides real-time monitoring. Instantaneous data transmission enables timely response and quick decision-making, crucial for effective risk assessment and hazard mitigation.

Easy Installation and Setup: The High Resolution Smart Seismic Sensor offers a user-friendly experience with effortless installation and setup. It can be quickly deployed in various environments, including remote locations, ensuring flexibility and convenience.

Robust Durability: Built to withstand harsh environmental conditions, this sensor is engineered with rugged materials. Its robust design ensures long-lasting performance, making it suitable for both temporary deployments and permanent installations.

Compatibility and Integration: The Smart Solo Geophone seamlessly integrates with existing seismic monitoring systems, enabling easy compatibility and expanding the capabilities of your infrastructure. It supports various data formats and interfaces for efficient data exchange and analysis.

Applications

It is used in a variety of applications such as energy (oil and gas), mineral exploration, geophysical research engineering, earthquake monitoring, and geophysical scientific research.

Experience the future of seismic monitoring with the High Resolution Smart Seismic Sensor, also known as the Smart Solo Geophone. This cutting-edge sensor offers high-resolution data, real-time monitoring, easy installation, and robust durability. Enhance your understanding of seismic activities and make informed decisions with this advanced technology.

IGU-16HR Specifications

Size and Weight

95mm x 103mm x 118mm (without spike)

1.1kg(Including internal battery and spike)

Data Storage

8GB

32GB

Recharge Time<3.25 hours
Operating Life@25°C

35 days Continuous@ 2ms

70 days Segmented (12hours ON/12hours SLEEP) @ 2ms

External Power supplyExchange EB battery
Acquisition Performance 5Hz

Natural Frequency : 5Hz

Spurious Frequency : >170Hz

Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt

Damping : 0.7

Open Circuit Intrinsic Voltage Sensitivity : 80 V/m/s (2.03 V/in/s)

Remark : All parameters are specified at +22°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated

Acquisition Performance 10Hz

Natural Frequency : 10Hz
Spurious Frequency : >240Hz
Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt
Damping : 0.7
Open Circuit Intrinsic Voltage Sensitivity : 85.8 V/m/s (2.18 V/in/s)
Remark : All parameters are specified at +25°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated.

Physical Specs

Seismic data channel(s) : 1
ADC resolution : 32 bits
Sample intervals : 0.25, 0.5, 1, 2, 4 milliseconds
Preamplifier gain : 0dB to 36 dB in 6 dB steps
Anti-alias filter : 206.5 Hz @ 2ms (82.6% of Nyquist)
Selectable – Linear Phase or Minimum Phase
DC blocking filter : 1Hz to 10Hz, 1Hz increments or DC Removed
Operating temperature : -40°C ~ +70°C
Waterproof : IP68
Charging Temperature Range : +3°C ~ +45°C

Channel PerformanceMaximum Input Signal : ±2.5Vpeak @ Gain 0dB
Equivalent Input Noise : 0.18μV @ 2ms Gain 18dB
Total Harmonic Distortion : <0.0002% @ Gain 0dB
Common Mode Rejection : ≥100dB
Gain Accuracy : <0.5%
GPS Time Standard : 1ppm
Timing Accuracy : ±10μs, GPS Disciplined
System Dynamic Range : 145dB
Frequency Response : 0 ~ 1652Hz
Remark : All parameters are specified at 2ms sample interval, 31.25 Hz, 25°C, unless otherwise indicated

Geobit is the exclusive representative of SmartSolo Inc in Greece.

IGU-16HR 3C

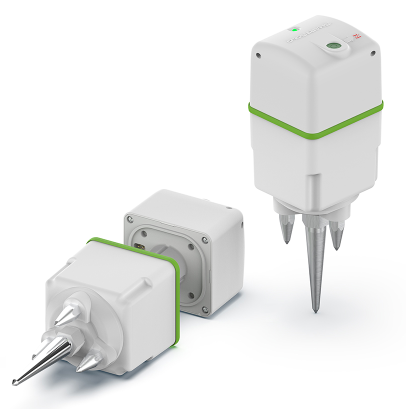

3 Component Smart Seismic Sensor

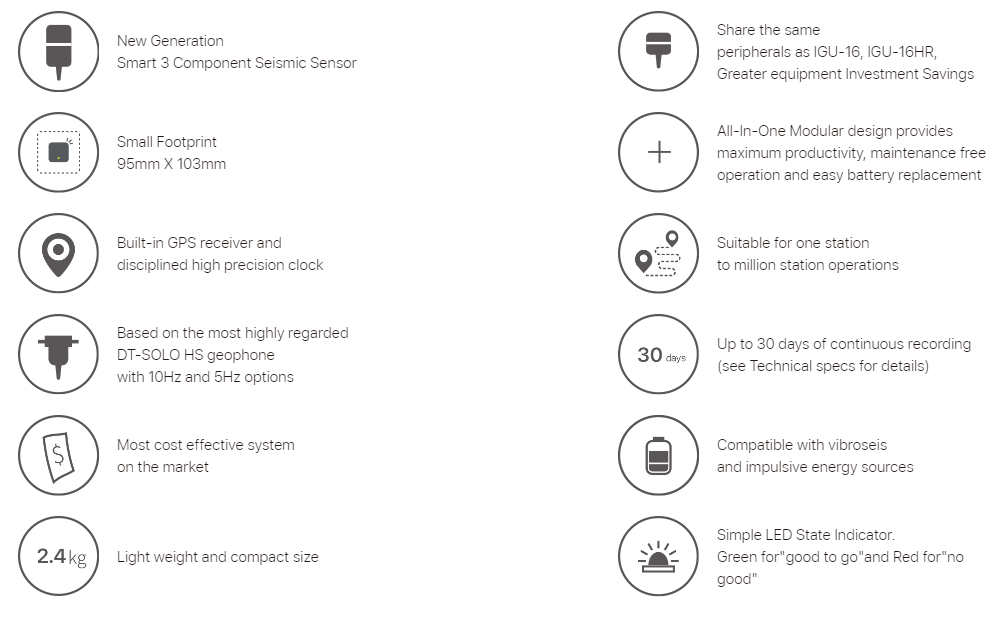

Easy to Deploy. Rugged and Reliable.
Patented Modular Design for Easy Battery Replacement
Fast Charging and High Speed Data Downloading

SmartSolo IGU-16HR 3C was designed to take every possible advantage of the mature and cost-effective electronic and software technologies of the mobile internet era. IGU-16HR 3C is suitable for active and passive seismic exploration. It can be used for energy and mineral exploration, urban seismic surveys, earthquake monitoring, and geophysical scientific research. It can share the same peripherals as IGU-16, and IGU-16HR, and Greater equipment investment savings. Incorporating many of the same high-reliability, low-power devices widely used in cell phones, our smart sensor contains everything necessary to sense and record top-quality seismic data, while keeping its functions and structure as simple as possible. This smart geophone is user-friendly, cost-effective and reliable to operate autonomously even in the most challenging conditions.

Three-component geophone( 3C geophone) is a kind of land-cased geophone to perform HVSR, MASW and vibration analysis, with features of robust, lightweight and convenient for field operation. One vertical and two horizontal high-precisions geophone sensors are properly coupled and mounted in a robust waterproof 3C case equipped with 75mm steel spikes.

  • High-quality 5Hz 3-Component Geophones for accurate seismic measurements
  • Rugged and durable construction for reliable performance in any environment
  • Compact and lightweight design for easy deployment and portability
  • Advanced connectivity options for seamless data transmission and integration
  • Real-time monitoring capabilities for immediate observation and analysis

SmartSolo supplies various 3C geophones ranging from 5Hz to 10Hz

IGU-16HR 3C Specifications

Size and Weight103mm(L) × 95mm(W) × 187mm(H)(w/o spike)
2.4kg(Including internal battery and spike)
Data Storage64GB
Recharge Time<6 hours
Operating Life@25°C30 days Continuous@ 2ms
60 days Segmented (12hours ON/12hours SLEEP) @ 2ms
External Power supplyExchange EB battery
Acquisition Performance 5HzNatural Frequency : 5Hz
Spurious Frequency : >170Hz (>150Hz in horizontal sensor)
Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt, (0° ~ 3°) horizontal tilt
Damping : 0.7
Open Circuit Intrinsic Voltage Sensitivity : 76.7 V/m/s (1.95 V/in/s)
Remark : All parameters are specified at +22°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated
Acquisition Performance 10HzNatural Frequency : 10Hz
Spurious Frequency : >240Hz
Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt, (0° ~ 3°) horizontal tilt
Damping : 0.7
Open Circuit Intrinsic Voltage Sensitivity : 78.7 V/m/s (2.0 V/in/s)
Remark : All parameters are specified at +25°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated.
Physical SpecsSeismic data channel(s) : 3
ADC resolution : 32 bits
Sample intervals : 0.25, 0.5, 1, 2, 4, 8, 10, 20 milliseconds
Preamplifier gain : 0dB to 36 dB in 6 dB steps
Anti-alias filter : 206.5 Hz @ 2ms (82.6% of Nyquist)
Selectable – Linear Phase or Minimum Phase
DC blocking filter : 1Hz to 10Hz, 1Hz increments or DC Removed
Operating temperature : -40°C ~ +70°C
Waterproof : IP68
Charging Temperature Range : +3°C ~ +45°C
Channel PerformanceMaximum Input Signal : ±2.5Vpeak @ Gain 0dB
Equivalent Input Noise : 0.18μV @ 2ms Gain 18dB
Total Harmonic Distortion : <0.0002% @ Gain 0dB
Common Mode Rejection : ≥100dB
Gain Accuracy : <1%
GPS Time Standard : 1ppm
Timing Accuracy : ±10μs, GPS Disciplined
Cross Feed : < -110dB
System Dynamic Range : 145dB
Frequency Response : 0 ~ 1652Hz
Wireless Communication : Bluetooth Low Energy
Remark : All parameters are specified at 2ms sample interval, 31.25 Hz, 25°C, unless otherwise indicated

Geobit is the exclusive representative of SmartSolo Inc in Greece.
