GEOsix Low Power Digitizer/Recorder
GEObit introduces GEOsix series high resolution 6+1 analog seismic channels telemetry digitizer/recorder. The size of the instrument is only 168 x 106 x 68mm. The power consumption is only 1.2W for 6 channels. The available sampling rate is 100 to 500sps/6ch, 100 to 1000sps/3ch and optional lower sampling intervals are supported. Built-in GPS receiver combined with ultra-accurate DPLL unit providing time drift 10e-9 sec ensures timing stability even in the absence of GPS signal. NTP timing is also available. The unit is very flexible and accepts several types of analog front end units so any type of seismic sensor can be connected. Additionally, it provides eight extra-low resolution and rate analog inputs for seismometer mass position monitoring, or any other environmental parameter monitoring.
Eight TTL command outputs are supported for seismometer control or for any other external device control. Typically the digitizer supports differential variable gain preamplifier. Our force-balance sensor front end is also supported, providing a wide-band response (10sec – 98Hz) and high sensitivity 1500V/m/s by connecting a C100 sensor. Acquisition parameters and operation modes can be set from the user – friendly web interface.
GEOsix technical specifications
- High resolution digitizer
- Eight extra analog inputs
- Eight TTL command lines
- Low power consumption
- Dimensions 168x106x68mm
- GPS time / Precision DPLL
- 1-2000 samples per second
- 6 seismic input channels
- Ultra low noise preamplifier
- Embedded Open Source OS
- Embedded SeedLink Server
- Embedded Earthworm Serve
- Continuous/Trigger recording
- Advanced functionality
- Smart Network Operation


The unit operates in continuous mode, triggered mode or both and data are streamed through different data ports. Local data storage is selectable as well as logfile information. The unit supports advanced functionality, implemented from the combination of trusted open-source software components. Because of its open-source architecture, it is able to run any custom application thus providing a next day solution to the user. The hardware is based on an embedded ARM9 400MHz ARM Linux board. The data are stored in mini-SEED format into the microSD card or to a removable USB stick. The instrument supports 10/100 ethernet port and debug port. FTP, SFTP, SSH are also available. The state of health is transmitted over UDP packets upon request.

GEOthree Low Power Digitizer/Recorder
GEObit introduces GEOthree series high resolution 3+1 analog seismic channels telemetry digitizer/recorder. The size of the instrument is only 168 X 106 X 68mm. The power consumption is only 0.9W for 3 channels. Available sampling rate is 100 to 1000sps and optional lower sampling rates are supported. Built-in GPS receiver combined with ultra-accurate DPLL unit providing time drift 10e-9 sec ensures timing stability even in the absence of GPS signal. NTP timing is also available. The unit is very flexible and accepts several types of analog front end units so any type of seismic sensor can be connected. Additionally, it provides eight extra-low resolution and rate analog inputs for seismometer mass position monitoring, or any other environmental parameter monitoring. Eight TTL command outputs are supported for seismometer control or for any other external device control. Typically the digitizer supports differential variable gain preamplifier. Our force-balance sensor front end is also supported, providing a wide-band response (10sec – 98Hz) and high sensitivity 1500V/m/s by connecting a C100 sensor. Acquisition parameters and operation modes can be set from the user – friendly web interface.

GEOthree technical specifications
- High resolution digitizer
- Four extra analog inputs
- Four TTL command lines
- Low power consumption
- Dimensions 168x106x68mm
- GPS time / Precision DPLL
- 1-4000 samples per second
- 3+1 seismic channels
- Ultra low noise preamplifier
- Embedded Open Source OS
- Embedded SeedLink Server
- Embedded Earthworm Serve
- Continuous/Trigger recording
- Advanced functionality
- Smart Network Operation
The unit operates in continuous mode, triggered mode or both and data are streamed through different data ports. Local data storage is selectable as well as logfile information. The unit supports advanced functionality, implemented from the combination of trusted open-source software components. Because of its open-source architecture, it is able to run any custom application thus providing a next day solution to the user. The hardware is based on an embedded ARM9 400MHz ARM Linux board. The data are stored in mini-SEED format into the microSD card or to a removable USB stick. The instrument supports 10/100 ethernet port and debug port. FTP, SFTP, SSH are also available. The state of health is transmitted over UDP packets upon request.

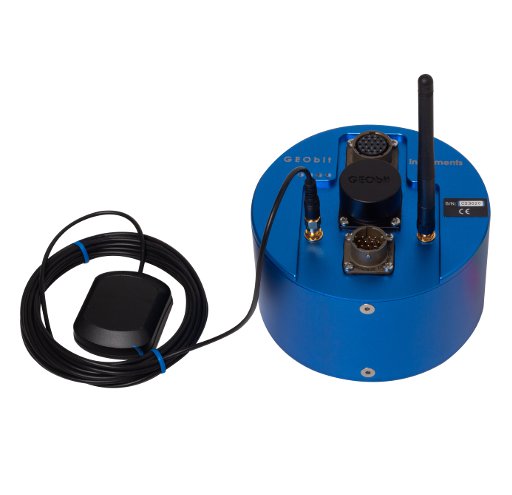

GEO3tiny Low Power Digitizer/Recorder
GEO3tiny is a compact miniature seismic digitizer which integrates three seismic and three acceleration channels plus three extra analog channels for seismometer mass monitoring. It supports high resolution 24bit digitizer, embedded linux OS and GPS or NTP timing. Seedlink and Earthworm server ensures reliable real time data telemetry while large storage volume ensures long period local data recording. The instrument has extremely low power consumption so it can operate getting powered from a small 12Vdc battery. Due to its small size provides the ability to be buried underground. The analog input supports differential architecture and variable gain set, user configurable. Three extra analog channels can monitor seismometer’s mass position and three control lines can be used for seismometer Lock, Unlock and Centering. The digitizer can be connected to any kind of active or passive seismometer. It operates in continuous mode, triggered mode or both and data are streamed through different data ports. Local data storage is selectable as well as logfile in- formation. The unit supports advanced functionality, implemented from the combination of trusted open source soft- ware components. Because of its open-source architecture is able to run any custom application thus providing the next day solution to the user. The hardware is based over an embedded ARM9 400MHz ARM linux board running 14.6 linux kernel. The data are stored in mini-SEED format into the microSD card or to a removable USB stick. The instrument supports 10/100 ethernet port and debug port. FTP, SFTP, SSH are also available. The state of health is transmitted over UDP packets upon request.

GEOthree technical specifications
- Three 24bit seismic channels
- Three extra analog channels
- Three control lines
- Low power consumption
- Iintegrated 3C accelerometer
- Only 130mm D/60mm H
- High resolution 140dB
- Embedded Seedlink & Earthworm Server
- Realtime Telemetry and Local Storage
- MiniSeed data format
- Linux open source OS
- Web Interface Menu
- SSH, SFTP, HTTPS, CoAP, NTP
- Operation Range: -20 +70°C
- Waterproof IP67 aluminum case
