GEO-S120 Broadband Seismic Sensor

  • 3 component broad-band seismometer
  • Force Balance with capacitive transducer
  • Surface or shallow burry installations
  • 150mm diameter, 125mm height
  • Aluminium or Stainless Steel casing
  • Bandwidth 120sec - 80Hz or 60sec-90Hz
  • Sensitivity 1200V/m/s
  • Power consumption < 1W
  • Automatic mass center
  • Self-noise 80sec-16Hz below NLNM
  • Dynamic range > 155dB @1Hz
  • Operation Range: -20 +60°C

The GEO-S120 broadband seismometer is a product rely on years of experience in designing high precision, low noise, and reliable seismic equipment. Based on a very sensitive capacitive transducer that monitors the position of the seismic bass and a feedback loop that generates signal output proportional to velocity with extended bandwidth 120sec to 80Hz. The instrument has low self-noise so it is ideal for local, regional and teleseismic earthquake recording. No mass lock is required and supports automatic mass centering. The sensor provides calibration input and communication via serial port. The GEO-s120 design is exceptionally versatile, ideal for both direct bury and vault use cases. The seismometer casing is made from hard anodized aluminum or stainless steel.

When combined with our GEOthree or GEOsix datalogger the GEO-S120 provides a true broadband station with low overall power consumption, providing an ideal solution for rapid response applications that require high-resolution data. The GEO-S60 version of this seismometer has equal specifications but the output velocity response is flat between 60sec to 90Hz.

The S-20 near broad band seismic sensor

  • 3-axis near broad band response (20sec-50Hz) seismometers
  • High Sensitivity 1500 V/m/sec, low power consumption.
  • Borehole Type, 80 mm diameter.
  • Surface type, 140 mm diameter.
  • Typical 20 m cable length, optional up to 150m
  • Build-in test line.

The S-20 seismometer is a three-component velocity output near broad band seismic sensor. The design is based on the electronic velocity feedback which is applied to single coil low period geophone. The frequency bandwidth is extended from 50Hz, down to 20sec.

Two sensor types are provided, a borehole seismometer type and a surface seismometer type.

The borehole type is housed into a 80mm diameter casing while the surface type unit’s diameter is 130mm. The cable length is typically 10 meters. It can be extended to 100 meters or more if required.

No mass-lock or centering is required that makes an easy connection with the digitizer. The settling time of the unit is very short, only one minute. Sensitivity is 1500V/m/sec (differentially) thus providing a very sensitive seismic sensor. A test line is also provided for calibration and testing.

The sensor is ideal for regional earthquake seismology and low frequency grumbling of volcanoes as well as for aftershock studies.

The S-100 wide band seismic sensor (MK3 version)

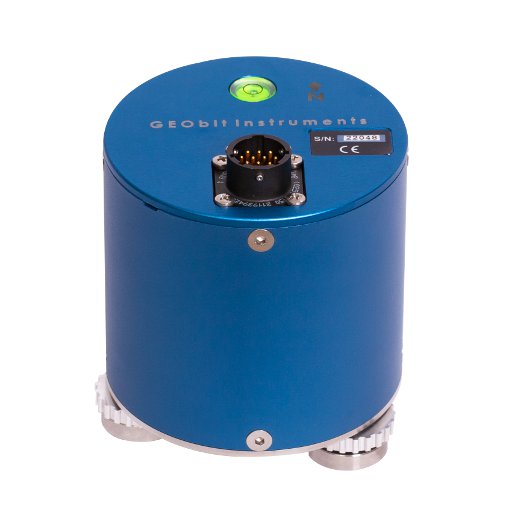

  • 3-axis Wide Band Response (10sec-98Hz) seismic sensor
  • Designed according the Force-Balance principle
  • High Sensitivity 1500 V/m/sec, Ultra low power consumption.
  • Borehole Type, 50mm diameter, elastic packer mounting.
  • Typical 20m cable length, optional up to 150m
  • Build-in Self test function.

The S-100 MK3 (third generation) is a three-component velocity output seismic sensor. The design is based on the force-balance principle, thus using three simple geophone elements, the frequency bandwidth is extended from 90Hz, down to 0.1Hz. The default cable length between the sensor casing and the electronics box is approximately 20 meters but it can be extended up to150 meters.

The sensing elements are housed in the same 50mm casing, therefore a solid waterproof sensor is suitable for installation into boreholes where the noise is much less than the surface. The elements are oriented according to the 3-axes principle. A dot mark, incised on the plastic cover of the case that indicates the direction of the North direction. Surface mount sensor package is also available.

The sensor is totally controlled by an advanced signal conditioner circuit which supplies current to the geophones forcing them to a constant vibration at different frequencies. The signal conditioner circuit is fully protected against over voltage, opposite power supply polarity and lightning inductive currents. When inactive, it enters the “power-off” mode in order to reduce power consumption of the system.

The S-100 wide band seismic sensor (Surface type)

  • 3-axis Wide Band Response (10sec-98Hz) seismic sensor
  • Designed according to the Force-Balance principle
  • High Sensitivity 1500 V/m/sec
  • Ultra-low power consumption.
  • Surface Type.
  • Velocity feedback design
  • Build-in Self test function.

The S-100 is a three-component velocity equivalent output seismic sensor. The unit is ideal for local and regional seismicity and microseismicity monitoring as well as, for induced micro-seismicity monitoring.

The design is based on the force-balance principle, Using three geophone elements, the bandwidth is extended to a lower frequency of the original geophone’s natural frequency. Actually three generations of the S-100 sensor have been implemented. Several low and upper corner frequencies provided through different senor configurations. Thus, 10s, 5s, 2s, and 1s low cut frequency corner is available as well as 50, 80 and 98 Hz high cut frequency corner. The sensitivity is 1000V/m/sec for the Mk1 version while it has been increased to 1500V/m/sec for the Mk2 and Mk3 versions.

The surface type has similar characteristics to the borehole type. No mass-lock or centering is required that makes easy the connection with the digitizer. The settling time of the unit is very short, only thirty seconds. Sensitivity is 1500V/m/sec (differentially) thus providing a very sensitive seismic unit. A test line is also provided for calibration and testing.

The C-100 seismic sensor

  • 3 component wide band seismometer
  • Borehole type, optional Surface type
  • Only 50mm diameter
  • Standard 20m depth
  • Smart elastic clamping
  • Wide Response 10sec-98Hz
  • High Sensitivity 1500V/m/s
  • Force-Balance Design
  • Build-in test function
  • Operation Range: -20 +70oC
  • Matching with GEOThree & GEOSix digitizers / recorders

The C-100 is a three-component velocity equivalent output seismometer. The sensor consisted basically from three geophone elements, one per axis. When combined with our force-balance electronics (third generation), the bandwidth is extended to 10sec – 98Hz, and the sensitivity is increased to 1500V/m/sec.

The seismometer electronics are integrated to GEOThree digitizer and provide sensitivity 1500V/m/sec. The default cable length is approximately 20 meters but it can be extended up to150 meters. A dot sign, engraved on the plastic cover of the case, indicates the direction of each axis. A smart elastic clamping ensures excellent coupling with the borehole at any depth. Optionally, surface mount installation is available

The S-200 seismic sensor

  • 3-axis, 4.5-240Hz seismic sensor
  • High Sensitivity 184 V/m/sec.
  • Velocity signal output.
  • Minimum recording signal 2.6nm/sec.
  • Damping 0.57
  • Borehole Type, up to 100m (Shallow Borehole).
  • Only 50mm diameter
  • Elastic packer mounting.
  • Ideal for Hydraulic Fracturing Recording (Tested)
  • Operating temperature -40 to +200oC
  • Matching with GEOThree & GEOSix digitizers / recorders
  • Wide band 1sec / 1500V/m/s available

This type of sensor has been designed for microseismic events recording during hydraulic fracturing reservoir experiments. The sensor body has been designed in order to house double geophone strings at each axis. The orientation follows the 3-axis principle. This sensor has an external diameter of 50mm allowing it to be installed into small and shallow boreholes, hence reducing the cost of installation. Using single geophone element per axis, the electronic noise floor becomes a limiting factor for this type of acquisition. Increasing the gain and minimizing the noise floor of the sensor give us the ability to record even smaller events.

The S-400 seismic sensor (hydraulic fracturing sensor)

  • 3-axis, 4.5-240Hz seismic sensor
  • High Sensitivity 368 V/m/sec.
  • Velocity signal output.
  • Minimum recording signal 1.3nm/sec.
  • Damping 0.57
  • Borehole Type, up to 100m (Shallow Borehole).
  • Only 50mm diameter
  • Elastic packer mounting.
  • Ideal for Hydraulic Fracturing Recording (Tested)
  • Operating temperature -40 to +200oC
  • Matching with GEOThree & GEOSix digitizers / recorders
  • Optional 1Hz / 3000V/m/s available

This type of seismometer has been designed for microseismic events recording during hydraulic fracturing reservoir experiments. It uses quad geophone strings per axis, in order to maximize sensitivity and minimize noise level.  Ideally when paired with our GEOThree or GEOSix digitizer / recorder.

GEOtiny! Compact Digital Seismometer

  • 3 components seismic sensor
  • 3 components acceleration sensor
  • Low power consumption.
  • Cost affordable design
  • Only 130mm diameter – 115mm Height
  • Integrated 24-bit digitizer
  • Embedded Seedlink Server
  • Real time data telemetry and local storage
  • Miniseed data format
  • Linux open source OS
  • Web interface menu
  • SSH, SFTP, Telnet
  • Modular seismic sensor design
  • Wide sensor response 10sec to 120Hz
  • Customized sensor corner frequency.
  • Operating temperature -40 to +70oC
  • Waterproof IP67 Anodized aluminium case.

GEOtiny is a compact miniature digital seismometer which integrates three seismic and three acceleration channels. It supports high resolution 24bit digitizer, embedded linux OS and GPS or NTP timing. Seedlink server ensures reliable real time data telemetry while large storage volume ensures long period local data recording. The instrument has very low power consumption so it can operate getting powered from a small 12V DC battery. Due to its small size provides the ability to be buried underground. Modular sensor interface allows the user to select between a variety of sensor types and frequency corners (10sec, 5sec, 2sec, 1sec, 2Hz, 4,5Hz), thus covering the short period and wide band seismic range. Design simplicity is the great advantage and it is reflected to the price which is only fraction of the common commercial seismometers. The user is able to deploy even 100% more units than using common seismometers at same cost.

GEOtiny20 Digital Seismometer (with 20sec sensor)

  • 3 components seismic sensor
  • Low power consumption
  • Cost affordable design
  • Only 130mm D / 155mm H
  • Integrated 24bit digitizer
  • Embedded Seedlink Server
  • Realtime Telemetry and Local Storage
  • MiniSeed data format
  • Linux open source OS
  • Web Interface Men
  • SSH, SFTP,Telnet
  • Modular seismic sensor design
  • Near Broad Band sensor 20s to 50Hz
  • Customized Sensor Corner Frequency
  • High Sensitivity 1500V/m/s
  • Operation Range: -20 +70 C
  • Waterproof IP67 Aluminum Case

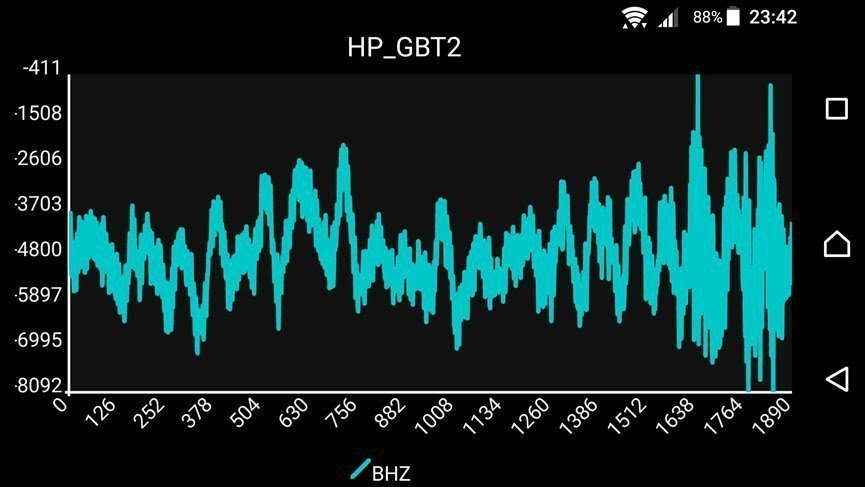

Connect to GEOtiny from your android or iOS

GEOtiny now supports wifi connection. Instrument setup and data view never was easier! Try GEOtiny’s web interface and see the real time data stream using your mobile or tablet!

The S-40 broad band seismic sensor

  • 3 component active sensor
  • Low power consumption
  • Borehole/surface type
  • 118/80mm diameter(SM/BH)
  • Up to 150m depth(BH)
  • Smart elastic clamping(BH)
  • Guiding wheels driver(BH)
  • Wide input voltage range
  • Build-in test line
  • Response 40sec-98Hz or 120sec-98Hz
  • Sensitivity 750V/m/s or 1500V/m/s
  • Operation Range: -20 +70 C

40sec-98Hz or 120sec-98Hz

The sensor technolgy combines optical electronis for the implementation of the mass position transducer and force balance feedback to deliver wide band frequency response. With superior signal-to-noise ratio and broad-band response, the low noise optical seismometer achieves performance advantages previously associated only with scientific instruments in an easy to deploy, rugged design.
With the largest dynamic range available among seismic sensors, the sensor eliminates the need for multiple sensors to maximize the signal capture in terms of seismic amplitude and bandwidth. For example, applications which once required a broad-band seismometer paired with a strong-motion accelerometer can be addressed with a single sensor.

  • Broad-Band Networks
  • Regional Seismicity Monitoring
  • Seismic Tomography Acquisition
  • Induced Seismicity Monitoring
  • Volcano Monitoring
  • Permanent Seismic Networks
  • Portable Seismic Networks
  • Earthquake Early Warning Systems

The default cable length of the sensor is approximately 10 meters but it can be extended up to 200 meters. The sensor electronics are housed inside the sensor casing. Two sensor types are provided, one borehole type and one surface type. Both have similar characteristics. The borehole type is housed into an 80mm diameter casing while the surface type unit’s diameter is 118mm. No mass-lock or centering is required that makes an easy connection with the digitizer.
